Hangboard swap plate manual

Installing the Swap Plate:

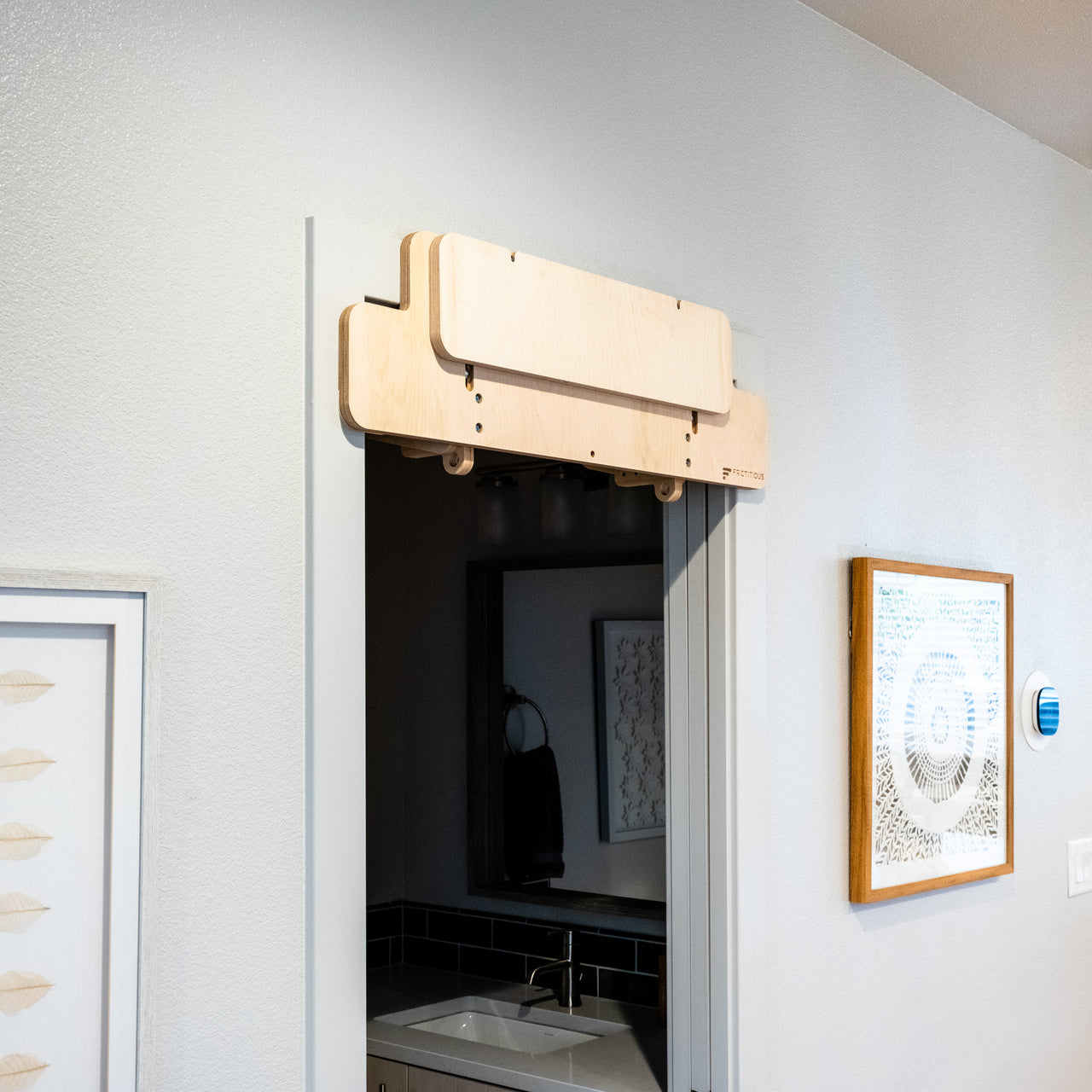

  1. Align the Swap Plate flush with the Doorway Mount.

  2. Slowly slide it downward until the pins are fully seated and locked into the slots at the top of the Doorway Mount.

  3. Confirm the following before proceeding:

  • The plate is flush with the Doorway Mount.

  • The pins are fully slid down and securely seated in their slots.

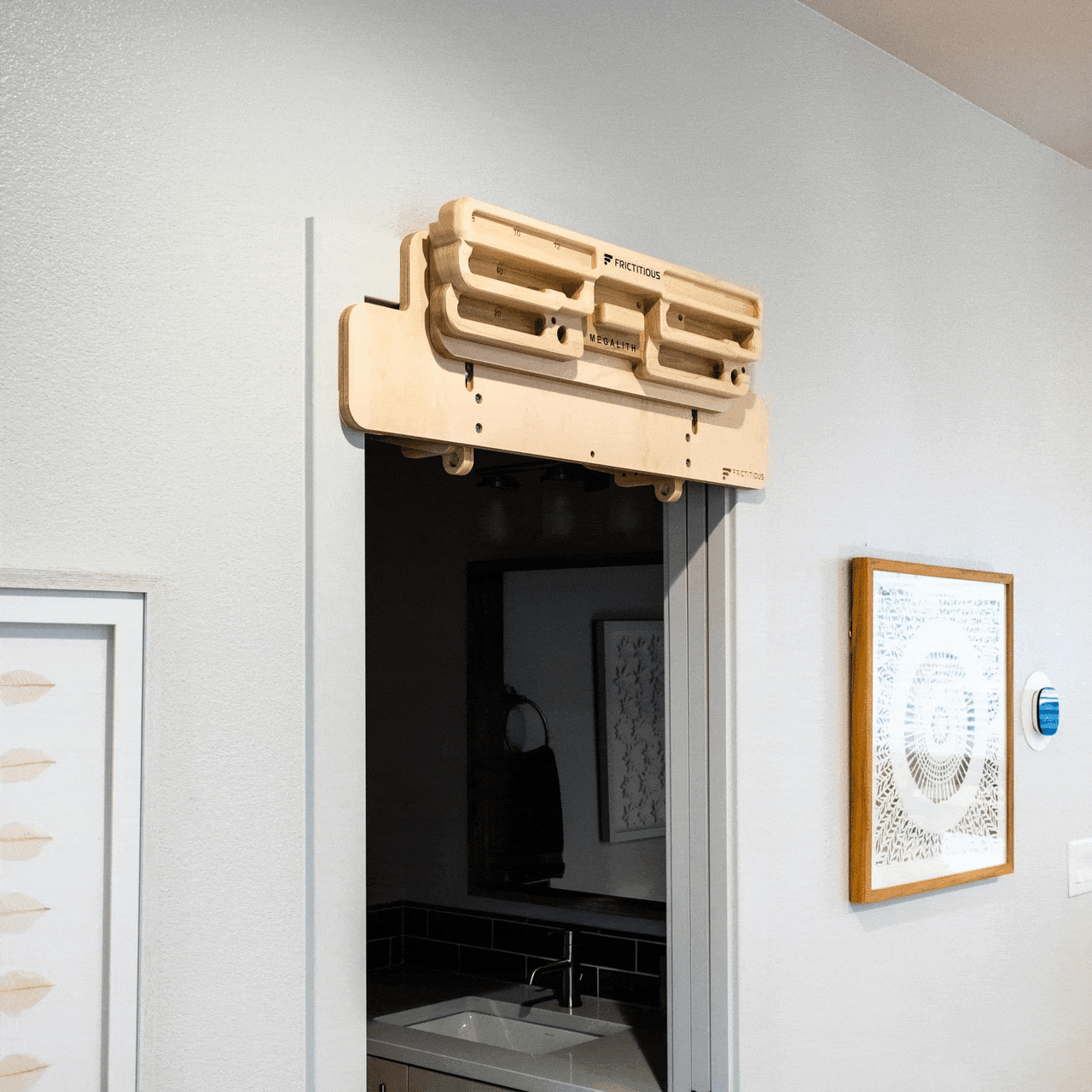

Attaching a Frictitious Hangboard:

  • All Frictitious Hangboards include six screws, sized specifically for mounting to ¾-inch boards.

  • To install, begin fastening the screws at the top of the hangboard and work your way down.

⚠️ Do not to over-tighten the screws. Tighten them until they’re fully “sunk” into the countersinks of the screw holes and tight, but do not continue tightening as you could damage the board.

Using a Non-Frictitious Hangboard:

  • When mounting a hangboard to the plate, make sure all screw holes on the hangboard can be used. Do not mount boards that require skipping screw holes.

  • Keep all screws at least 1" away from the pins in the plate.

  • You’ll need to purchase your own screws.

  • Use screws that are size #10 or larger, and long enough to go three-quarters of the way through the mounting plate without protruding from the back.

  • Pro tip: Bring your mounting plate and hangboard to a local hardware store to get the right screws.

⚠️ IMPORTANT SAFETY NOTE:

Weight limit: 225 lb (102 kg)

Inspect the pins before every use. Ensure they are solidly in place and undamaged.
